Ultrasonic Sensors Solving Distance Measurement Automation Challenges

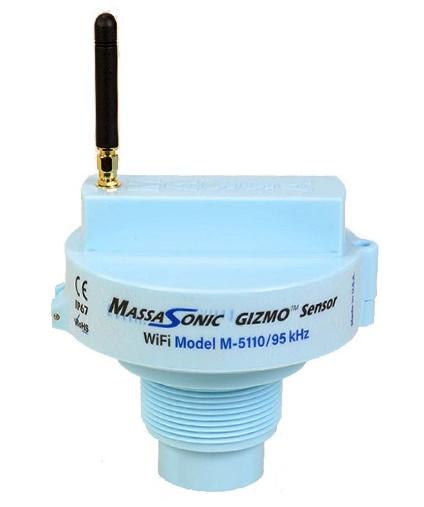

gazimo-sensorMassa Products Corporation is proud to unveil the MassaSonic Gizmo®, the latest advancement in wireless ultrasonic sensing technology. Utilizing direct customer feedback, Gizmo was designed to outperform its predecessor (the M3) and is tailored to the requirements of industry today. Through its ease-of-use improvements and newly offered capabilities, Gizmo is the standard for the next generation of wireless sensing.

Engineered with numerous applications in mind, the Gizmo offers flexible and accurate sensing modes to match specific use cases, along with secure communications and data transmission. It also provides a superb end user experience with easy interface and integration within nearly any comprehensive remote sensing installation. Whether you have a robust cloud-based or locally hosted data infrastructure, Gizmo enables smooth and swift implementation without disrupting existing framework.

With its long battery life and Firmware-Over-The-Air (FOTA) update capability, the Gizmo minimizes the need for frequent physical maintenance. All these features combine to redefine what is thought to be possible in a wireless sensor package.

MassaSonic Gizmo Sensors
150kHz
(Short Range)
95kHz
(Medium Range)
Min Detection Distance 4 inches (100mm) 8 inches (200mm)
Max Detection Distance 9 feet (2.7m) 20 feet (6m)
Communication MQTT with JSON Payloads or TCP/IP Local Host Mode
Housing Material PVDF
Mount 2” NPT
Operating Temperature Range -40 C to 65 C
WiFi Range 200 to 400 Feet (61 to 122m) Antenna Dependent
Datasheet Link Gizmo Wireless Level Sensor Datasheet
Installation and Getting Started Guide Installation and Getting Started Guide
Advanced Users Programming Guide Advanced Users Programming Guide
MMSA Software Guide MMSA Software Guide

Set for release in 2025 is the MassaSonic Gizmo® Wireless Sensor with Cellular Communications! Coming with the reliability and durability you’ve come to expect with Massa, this sensor is the only solution for those applications where a WiFi infrastructure does not exist. Outfitted with LTE CAT M connectivity, the Cellular Gizmo  seamlessly interfaces with existing data systems, ensuring easy integration that meets your needs.
